Nozzle Ultrasonic Cleaning Machine 55*45*35cm with heating Funtion
Main performance characteristics
The washing machine is operated by single chip software.
The cleaning machine's sound reduction cover and cleaning tank are made of high quality stainless steel.
The washing machine has good sealing performance and has sound insulation and heat insulation effect.
Digital display over temperature, over voltage, over current, low water level, no solution protection indication.
Digital memory, setting display ultrasonic working time, ultrasonic power, liquid level (and actual liquid level), heating temperature (and actual temperature).
The cleaning machine circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, which makes the cleaning effect more obvious and the work is more stable.
The cleaning circuit and device are upgraded and matched, and the power conversion rate is high and the reactive power loss is low.
Manual cleaning & Ultrasonic cleaning
Usually we use a water gun to flush the engine manually. It seems easy operation and convenient, but many of dead angles are easily to missed, and it’s also waste the time and manpower.
Ultrasonic cleaning is a convenient and fast way to save manpower and time, it can Perfect for cleaning the longhole, finedraw and shelter of piece part or workpiece, no need to touch cleaning fluid by your hands.
You just need to put the engine cylinder head into the liquid of machine, and turn on the power.
The machine will generate sound waves, when the sound waves travel through the liquid, millions of tiny bubbles form and burst continuously, the formation and implosion of these bubbles occurs at rates of thousand of time per second, the bursting bubbles scrub everywhere the liquid can penetrate. Intricate surfaces and difficult access areas people can not reach manually.
Specifications:
| Model name | JP-240ST |
| Internal tank size | 55*40*35mm |
| Application | Clean nozzle, spinneret plate |
| Function | Removing dirts, oil, rust, grease |
| Feature | No damage to precision mold |
| Tank capacity | 77L |
| Transducer | 24pcs |
| Ultrasonic power | 1200W |
| Heating power | 3000W |
| Time control | 0~99 minutes |
| Temperature control | 20~95℃ |
| Water inlet / outlet | Yes |
| Voltage | 220V / 110V |
| Filter | 1 set |

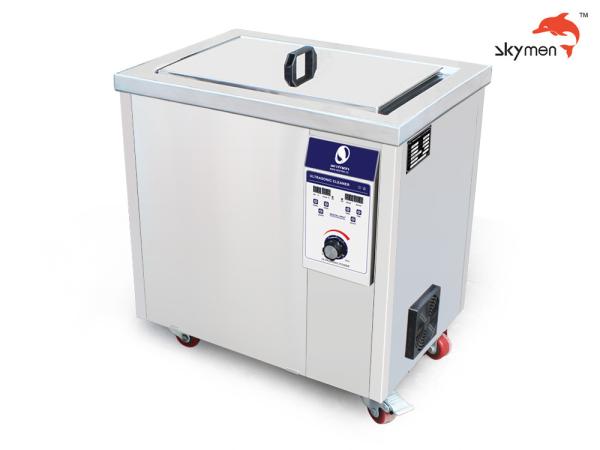

Image of this machine:
Cleaning effect of this machine:
Same models with different capacity
| Model | Capacity | Tank Size | Transducers | Ultrasonic Power | Heating Power | Frequency |
| (L) | (L*W*H)mm | (pcs) | (W) | (W) | (KHz) |
| JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 | 28/40 |
| JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 | 28/40 |
| JP-240ST | 77 | 550X400X350 | 24 | 120 | 3000 | 28/40 |
| JP-300ST | 99 | 550X450X400 | 30 | 1500 | 3000 | 28/40 |
| JP-301ST | 99 | 800X300X400 | 30 | 1500 | 3000 | 28/40 |
| JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 | 28/40 |
| JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 | 28/40 |
| JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 | 28/40 |
| JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 | 28/40 |
| JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 | 28/40 |
| JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 27000 | 28/40 |
Cleaning video:
Main performance characteristics
The washing machine is operated by single chip software.
The cleaning machine's sound reduction cover and cleaning tank are made of high quality stainless steel.
The washing machine has good sealing performance and has sound insulation and heat insulation effect.
Digital display over temperature, over voltage, over current, low water level, no solution protection indication.
Digital memory, setting display ultrasonic working time, ultrasonic power, liquid level (and actual liquid level), heating temperature (and actual temperature).
The cleaning machine circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, which makes the cleaning effect more obvious and the work is more stable.
The cleaning circuit and device are upgraded and matched, and the power conversion rate is high and the reactive power loss is low.
